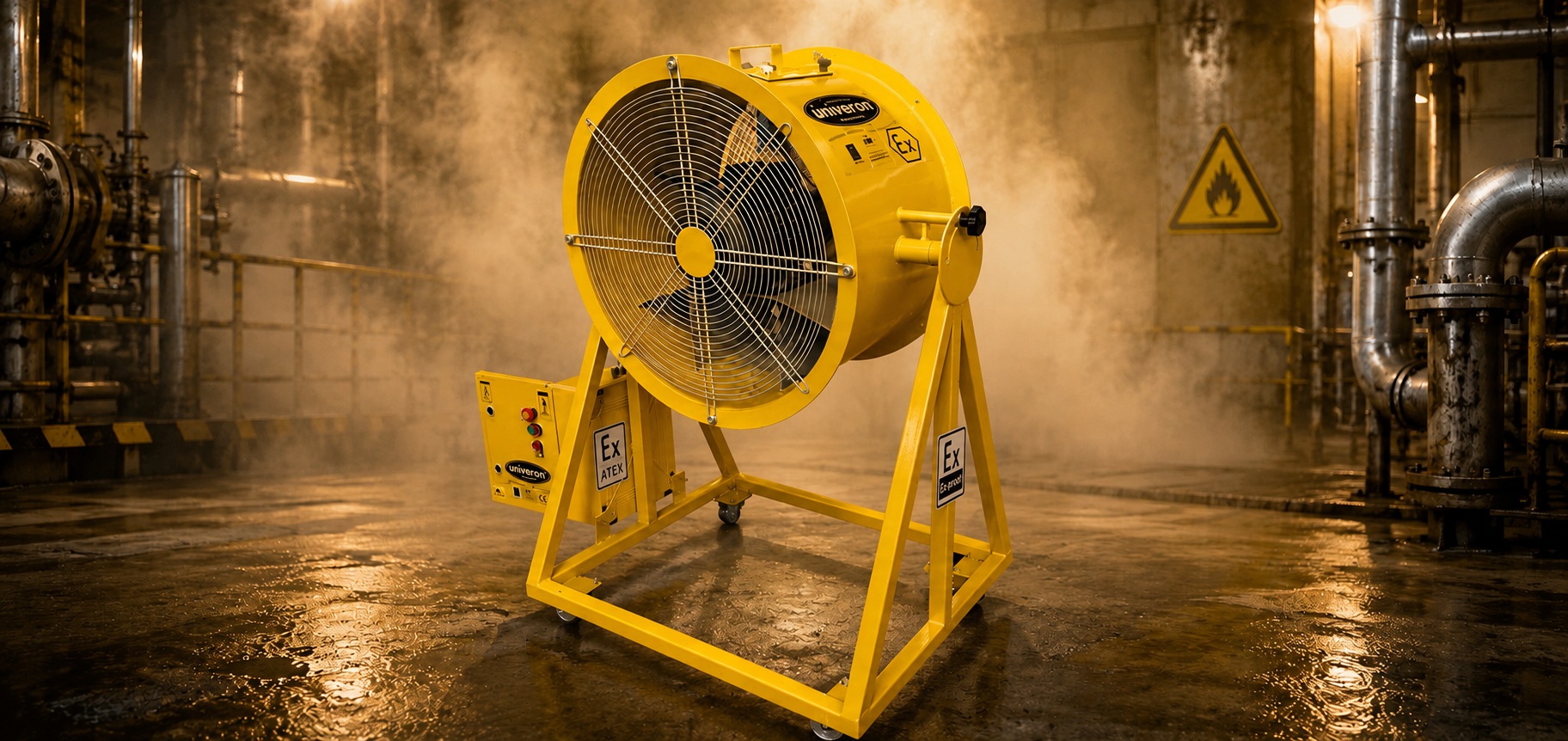

Mobile Ex-Proof Fans


– It can easily be carried from one place to another, using its wheeled transport console
– Used in flammable and explosive environments
– The blade angels of the propellers are adjustable.
– It can be used in two directions for both sucking and pressing.
– Angles adjustments can be made easily with the vertical movement mechanism.
– Comes with a 10 meter-long flame-retardant and antistatic hose
– The blades of the fans and the rotor are aluminum
– The fan body is ST37 (S 235 JR) with epoxy (RAL 1003) protection on steel sheet.
– Direct coupled ex-proof engines are 3 * 400 V – 50 Hz. – F Class – IP55 feature
– Protection wire is mounted on both sides of the fans
– Ex-proof fans are produced in accordance with the international ex-proof norms.
– Ex-proof terminal boxes to be mounted on the bodies of the fans are equally protected to
the engines to be used.
– Static and Dynamic balancing is performed according to the ISO 21940 Standard upon
manufacturing.

Optional: Please ask for price for an anti-static flexible tarpaulin air duct with copper-plated steel wire

  • Selection Table

    Stock Code

    Model

    Dia.

    Transfer

    Engine

    Pres.

    Flow

    (mm)

    (d/d)

    (kw)

    (Pa)

    (m³/h)

    510301

    C2/400

    1,5A AEX

    400

    3000

    1,5

    300

    6400

    510302

    C2/450 3A

    AEX

    450

    3000

    3

    250

    11000

    510303

    H4/630

    1,5A AEX

    630

    1500

    1,5

    200

    12000

    510304

    H4/710

    2,2A AEX

    710

    1500

    2,2

    300

    13220

    510305

    H4/710 3A

    AEX

    710

    1500

    3

    300

    17150

    510306

    H4/800 4A

    AEX

    800

    1500

    4

    200

    23350

    510307

    H4/900

    5,5A AEX

    900

    1500

    5,5

    200

    28000
