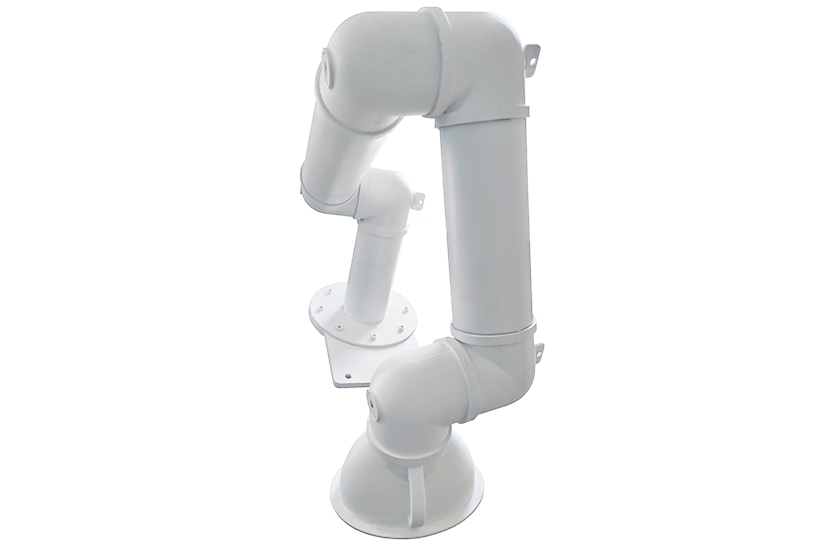

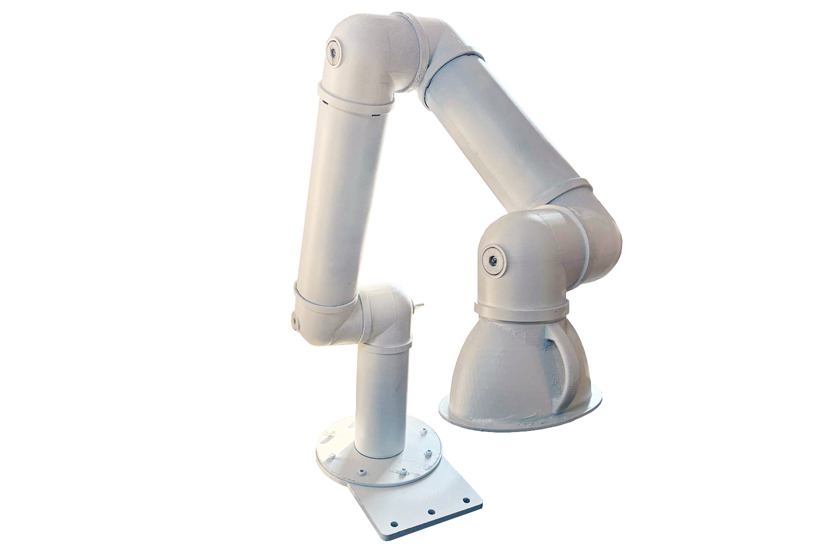

UAS Laboratory Type Acrobat Arm

Laboratory Gas Extraction and Ventilation Systems

Safe, Flexible and Chemically Resistant Solution

The UAS^® Laboratory Type Acrobat Arm is a high-performance local extraction system designed to protect users by capturing harmful gases, fumes, vapors, and particles at the source in laboratory environments. Thanks to its flexible structure, it can be easily positioned according to the operator’s needs and remains stable at the desired position.

WHAT IS IT USED FOR?

During laboratory processes, the following substances may be released:

Chemical vapors

Acid and alkaline gases

Organic solvent vapors

Smoke and particulates

Odors and harmful gases

These pose serious risks to human health.

UAS^® Laboratory Type Acrobat Arm:

Captures harmful substances at the source

Prevents their spread into the environment

Reduces respiratory risks for employees

Improves occupational safety standards

APPLICATION AREAS

The UAS^® Acrobat Arm has a wide range of applications:

Laboratories

Chemical laboratories

Analytical testing laboratories

University and R&D laboratories

Pharmaceutical and biotechnology labs

Industrial Areas

Chemical production facilities

Painting and coating lines

Plastic and rubber processing plants

Healthcare Sector

Hospital laboratories

Pathology and microbiology units

Special Applications

Educational laboratories

Cleaning chemical production areas

Battery and electronics manufacturing

CHEMICAL RESISTANCE

The UAS^® Laboratory Type Acrobat Arm offers wide chemical resistance depending on the material combination used.

Resistant Chemical Groups

Acids:

Sulfuric acid (low/medium concentration)

Hydrochloric acid

Nitric acid (under controlled use)

Bases:

Sodium hydroxide (caustic)

Potassium hydroxide

Organic Solvents:

Alcohols (ethanol, isopropanol)

Acetone

Toluene and similar aromatics (depending on material)

Others:

Detergents

Light oil vapors

Laboratory gases

FEATURES

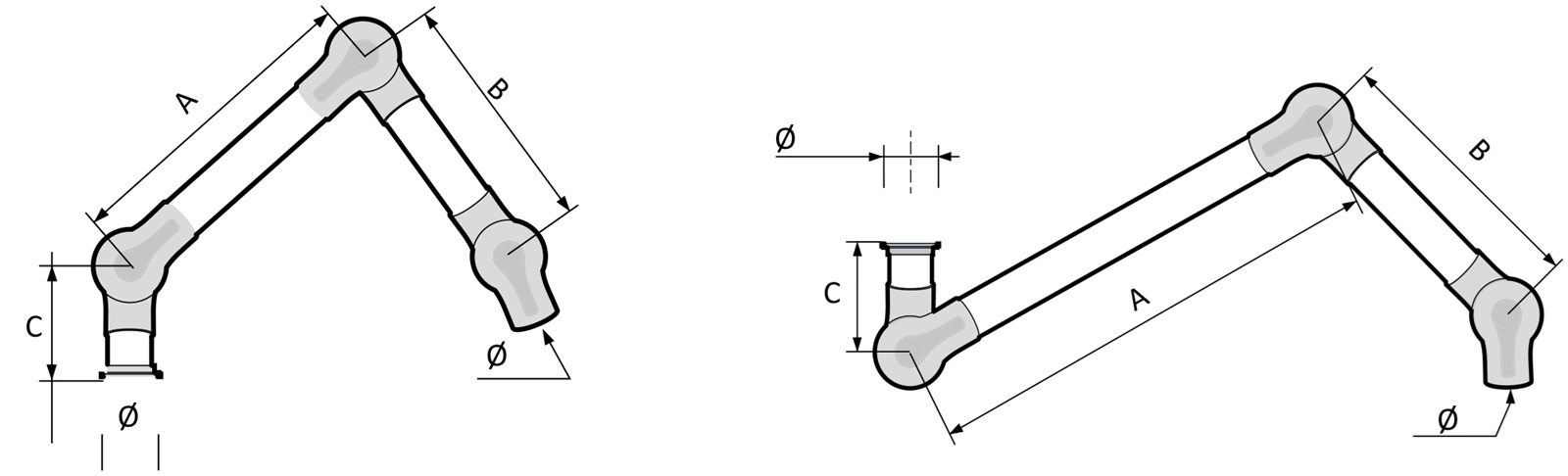

Diameter options: 76 mm – 100 mm

Length options: 100 cm – 125 cm – 150 cm

360° rotating hood

Position locking feature

Lightweight and ergonomic design

High suction efficiency

Low pressure loss

WHY UAS® ACROBAT ARM?

Source capture for maximum safety

Durable material structure

Easy installation and maintenance

Flexible and user-friendly design

Advantage of local manufacturing

Custom production options

OPTIONAL FEATURES

Different hood types

Fan integration

Filtration systems (HEPA / carbon filter)

Anti-static and flame-retardant versions
